Arduino based – Level Crossing Control – by John Cornell

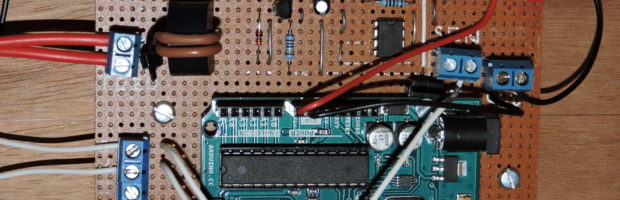

Inspired by some of some of Geoff Bunza’s work, John Cornell used an Arduino Uno to control level crossing (grade-crossing) booms and LED flashers. The details of John’s project are described below.

The booms are controlled by small servo-motors. Occupation detection is done via a simple circuit using a small toroidal transformer to detect the DCC feed to the track, in a block extending either side of the crossing. The occupation detection circuit and the Arduino are powered directly from the track as well.

Details of the project are shown below – enjoy!
